ADMV7420-EVALZ

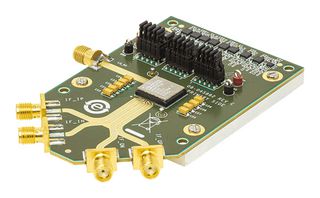

ADMV7420-EVALZ is an evaluation board to evaluate the ADMV7420 81GHz to 86GHz, E-Band, low noise downconverter SiP. The ADMV7420-EVALZ incorporates the ADMV7420 with low dropout (LDO) regulators, potentiometers and a waveguide back plate to allow quick and easy evaluation of the ADMV7420. The LDO regulators allow the ADMV7420 to be powered on by ±5VDC supplies. The ADMV7420 is a fully integrated system in package (SiP) inphase/quadrature (I/Q) downconverter that operates at an RF input frequency range of 81GHz to 86GHz and an intermediate frequency (IF) output frequency range of dc to 2GHz.

• Simple power-up with on-board LDO regulators
• Option to bypass LDO regulators with connector jumpers

Indhold

ADMV7420-EVALZ, Connector jumpers.

Noter

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
