10150097-3200RLF

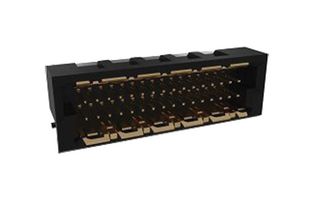

PCB Receptacle, Board-to-Board, 1 mm, 2 Rows, 32 Contacts, Surface Mount Straight
Billedet er vejledende. Se produktspecifikationen.
ProducentAMPHENOL COMMUNICATIONS SOLUTIONS
Producentens varenummer10150097-3200RLF
Varenummer3559195
ProduktsortimentFCI Minitek MicroSpeed
775 På Lager
Brug for flere?
Dag-til-dag levering
Bestil før kl. 17:00 for standardforsendelse
| Antal | |
|---|---|
| 1+ | kr 39,770 |
| 10+ | kr 33,800 |
| 100+ | kr 28,730 |
| 250+ | kr 26,420 |
| 500+ | kr 26,340 |
Pris for:Each (Supplied on Cut Tape)
Minimum: 1
Flere: 1
kr 39,77 (ekskl. Moms)
Tilføj varenr. / Linjenote
Tilføjet til din ordrebekræftelse, faktura og følgeseddel kun for denne ordre.
Dette antal vil blive tilføjet til ordrebekræftelsen, faktura, følgeseddel, webbekræftelses-e-mail og produktetiket.
Produktoplysninger
ProducentAMPHENOL COMMUNICATIONS SOLUTIONS
Producentens varenummer10150097-3200RLF
Varenummer3559195
ProduktsortimentFCI Minitek MicroSpeed
Connector SystemsBoard-to-Board
Pitch Spacing1mm
No. of Rows2Rows
No. of Contacts32Contacts
Connector MountingSurface Mount Straight
Product RangeFCI Minitek MicroSpeed
Contact MaterialBronze
Contact PlatingGold over Palladium Nickel Plated Contacts
SVHCNo SVHC (12-Jan-2017)
Produktoversigt
Minitek® MicroSpeed connector family with 1.00mm pitch supports high-speed data applications with up to 25Gb/s. These connectors are authorized by Erni to provide second source support and exact cross mating. These connectors feature a shielded design that provides superior EMC performance and significantly improved electromagnetic compatibility. The poka-yoke polarization prevents visual mismating, which makes it ideal for use in industrial environments.
- 32 pin VT receptacle, 10MM height
- Supports high speed performance up to 25Gb/s
- EMC shielding reduces coupling inductance, providing excellent electromagnetic compatibility
- Dual-beam contact with a robust design for customer application
- Blind mating feature
- Supports multiple PCB orientation applications
- Meets health, safety and environment requirements
- High temperature thermoplastic LCP, black (UL94V-0) housing
- UL E66906 certified, 1A per contact/10A per shield current, 500V(AC RMS, 60Hz) for 60sec voltage
- 500 cycles durability, 1N maximum per contact mating force
Tekniske specifikationer
Connector Systems
Board-to-Board
No. of Rows
2Rows
Connector Mounting
Surface Mount Straight
Contact Material
Bronze
SVHC
No SVHC (12-Jan-2017)
Pitch Spacing
1mm
No. of Contacts
32Contacts
Product Range
FCI Minitek MicroSpeed
Contact Plating
Gold over Palladium Nickel Plated Contacts
Tekniske dokumenter (2)
Lovgivning og miljø
Oprindelsesland:
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:China
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:China
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Tarifnr.:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS-kompatibel:Ja
RoHS
Kompatible med RoHS-phthalater:Ja
RoHS
SVHC:No SVHC (12-Jan-2017)
Download certifikat om produktoverholdelse
Certifikater om produktoverholdelse
Vægt (kg):.002694
