RJHSE-5081-08

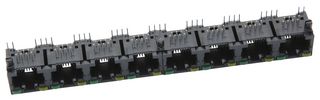

Modular Connector, Right Angle, RJ45 Jack, 1 x 8 (Ganged), 8P8C, Cat5, Through Hole Mount
Billedet er vejledende. Se produktspecifikationen.
ProducentAMPHENOL COMMUNICATIONS SOLUTIONS
Producentens varenummerRJHSE-5081-08
Varenummer2709014
ProduktsortimentRJHSE
Teknisk datablad
203 På Lager
Brug for flere?
Dag-til-dag levering
Bestil før kl. 17:00 for standardforsendelse
| Antal | |
|---|---|
| 1+ | kr 69,400 |
| 10+ | kr 60,730 |
| 25+ | kr 50,270 |
| 100+ | kr 45,120 |
| 250+ | kr 41,610 |
| 500+ | kr 38,840 |
Pris for:Each
Minimum: 1
Flere: 1
kr 69,40 (ekskl. Moms)
Tilføj varenr. / Linjenote
Tilføjet til din ordrebekræftelse, faktura og følgeseddel kun for denne ordre.
Dette antal vil blive tilføjet til ordrebekræftelsen, faktura, følgeseddel, webbekræftelses-e-mail og produktetiket.
Produktoplysninger
ProducentAMPHENOL COMMUNICATIONS SOLUTIONS
Producentens varenummerRJHSE-5081-08
Varenummer2709014
ProduktsortimentRJHSE
Teknisk datablad
Modular Connector TypeRJ45 Jack
Port Configuration1 x 8 (Ganged)
GenderJack
No. of Contacts8Contacts
No. of Positions / Loaded Contacts (per Port)8P8C
No. of Positions8Ways
LAN CategoryCat5
IP Rating-
Connector MountingThrough Hole Mount
Connector OrientationRight Angle
No. of Ports8Ports
Contact Termination TypeThrough Hole
ShieldingUnshielded
MagneticsWithout Magnetics
Contact PlatingGold Plated Contacts
Contact MaterialPhosphor Bronze
LEDsWith LED
Light PipesWithout Light Pipe
Product RangeRJHSE
Produktoversigt
The RJHSE-5081-08 from Amphenol Commercial Products is a right angle mount, 8 positions modular jack with 8 contacts and LED. It is ideal for LAN applications such as adapter cards and routers.
- High temperature thermoplastic black colour insulator complies with UL 94V-0
- Phosphor bronze hard temper with 50μ" gold plating
- Contact resistance is 20mohm maximum
- Insulation resistance is 500Mohm min at 500VDC for 2mins max
- Current rating is 1.5Amps per contact, voltage rating is 125Volts AC
- Through hole mount
- Tab up, eight port
- Operating temperature range from -55°C to + 105°C, UL E135615 approved and CSA LR685398 certified
- Durability is 750 mating & unmating cycles
Applikationer
Communications & Networking
Tekniske specifikationer
Modular Connector Type
RJ45 Jack
Gender
Jack
No. of Positions / Loaded Contacts (per Port)
8P8C
LAN Category
Cat5
Connector Mounting
Through Hole Mount
No. of Ports
8Ports
Shielding
Unshielded
Contact Plating
Gold Plated Contacts
LEDs
With LED
Product Range
RJHSE
Port Configuration
1 x 8 (Ganged)
No. of Contacts
8Contacts
No. of Positions
8Ways
IP Rating
-
Connector Orientation
Right Angle
Contact Termination Type
Through Hole
Magnetics
Without Magnetics
Contact Material
Phosphor Bronze
Light Pipes
Without Light Pipe
Tekniske dokumenter (2)
Lovgivning og miljø
Oprindelsesland:
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:China
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:China
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Tarifnr.:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS-kompatibel:Ja
RoHS
Kompatible med RoHS-phthalater:Ja
RoHS
Download certifikat om produktoverholdelse
Certifikater om produktoverholdelse
Vægt (kg):.020412
