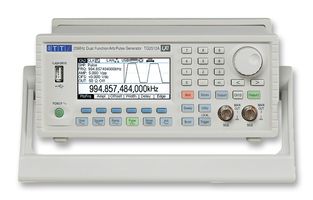

TG2512A -
Function Generator, Arbitrary / Pulse, 2 Channel, 25 MHz
- Producent:
- AIM-TTI INSTRUMENTS AIM-TTI INSTRUMENTS
- Producentens varenummer:
- TG2512A
- Varenummer:
- 2400217
- Teknisk datablad:
- TG2512A Datasheet
Produktoplysninger
- :
- Arbitrary, Function, Pulse
- :
- 2 Channel
- :
- -
- :
- 25MHz
- :
- AM, BPSK, FM, FSK, PM, PWM, Sum
- :
- 3 Years
- :
- -
Produktoversigt
The TG2512A is a two channel version of the TG2511A and has identical features augmented by multi-channel capabilities including coupling for frequency and/or level, full tracking, and defined phase offset. The channels can also be used as completely independent generators and they represent excellent value for money when compared with buying two generators.
- Standard waveforms: sine, square, ramp, pulse, sin(x)/x, noise, exponential, logarithmic, PRBS
- True pulse generator with variable delay and variable rise/fall
- Waveform storage and file transfers using USB flash drives
- Waveform Manager Plus for Windows editing software included
- Large graphic LCD with simultaneous text and waveform display
- 20mV to 20V pk-pk output from 50R ; multi function aux. out
- Storage for multiple instrument set-ups in non-volatile memory
- Compact half-rack 2U casing with protective buffers and handle
- Programmable via USB and LAN (LXI) interfaces; GPIB optional
- Two channels - independent or linked with coupled/tracking modes
- Selectable coupling of frequency (equal or offset), amplitude/dc offset
- Inter-channel phase offset of -360 to + 360 degrees with a 0.1 degree resolution
- Comprehensive internal and external digital modulations: PRBS, AM, FM, PM, PWM, FSK, BSPK and Sum
Applikationer
Test & Measurement, Signal Processing, Sensing & Instrumentation
Fodnoter
In addition, we offer calibration services for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration service page for more details.
