Udskriv side
283 På Lager
Brug for flere?
Dag-til-dag levering
Bestil før kl. 17:00 for standardforsendelse
Antal | |
---|---|
1+ | kr 28,130 |
10+ | kr 21,040 |
100+ | kr 20,370 |
250+ | kr 16,640 |
500+ | kr 15,820 |
1000+ | kr 14,920 |
Pris for:Each
Minimum: 1
Flere: 1
kr 28,13 (ekskl. Moms)
Tilføj varenr. / Linjenote
Tilføjet til din ordrebekræftelse, faktura og følgeseddel kun for denne ordre.
Dette antal vil blive tilføjet til ordrebekræftelsen, faktura, følgeseddel, webbekræftelses-e-mail og produktetiket.
Produktoplysninger
Producent3M
Producentens varenummerN2534-6002RB
Varenummer9838295
Produktsortiment2500
Også kendt som7100243273
Teknisk datablad
Connector SystemsWire-to-Board
Pitch Spacing2.54mm
No. of Rows2Rows
No. of Contacts34Contacts
Contact Termination TypeThrough Hole Straight
Product Range2500
Connector ShroudShrouded
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
Connector TypePCB Header
SVHCNo SVHC (17-Dec-2015)
Produktoversigt

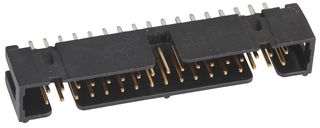

The N2534-6002RB is a 34-way 0.100 x 0.100-inch 4-wall Straight Header for 0.062-inch thick board tail, with gold-plated copper alloy contacts and through hole termination. This 2500 series low profile header is a glass filled polyester (PCT) insulated, center slot polarization prevents mis-insertions and reduces insertion time, suitable for reflow soldering using paste in hole techniques.
- Black colour high temperature glass filled polyester PCT insulator
- Copper alloy with gold plating contacts
- Temperature rating from -55°C to 105°C
- Withstanding Voltage: 1000V
- Current Rating:
- 5A, 1 Contact Powered, 3A, 6 Contacts Powered, 1.75A, All Contacts Powered
Applikationer
Industrial
Tekniske specifikationer
Connector Systems
Wire-to-Board
No. of Rows
2Rows
Contact Termination Type
Through Hole Straight
Connector Shroud
Shrouded
Contact Plating
Gold Plated Contacts
SVHC
No SVHC (17-Dec-2015)
Pitch Spacing
2.54mm
No. of Contacts
34Contacts
Product Range
2500
Contact Material
Copper Alloy
Connector Type
PCB Header
Tekniske dokumenter (3)
Alternativer til N2534-6002RB
6 produkter blev fundet
Tilknyttede produkter
4 produkter blev fundet
Lovgivning og miljø
Oprindelsesland:
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:United States
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:United States
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Tarifnr.:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS-kompatibel:Ja
RoHS
Kompatible med RoHS-phthalater:Ja
RoHS
SVHC:No SVHC (17-Dec-2015)
Download certifikat om produktoverholdelse
Certifikater om produktoverholdelse
Vægt (kg):.003402
