MIKROE-5642

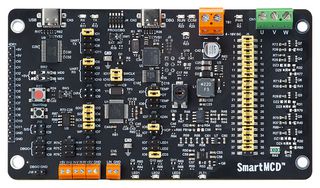

SmartMCD Board Kit, TB9M003FG, 3 Phase Sensorless BLDC Motor Driver
Billedet er vejledende. Se produktspecifikationen.
Kan bestilles
registrer din interesse her
| Antal | |
|---|---|
| 1+ | kr 633,120 |
Pris for:Each
Minimum: 1
Flere: 1
kr 633,12 (ekskl. Moms)
Tilføj varenr. / Linjenote
Tilføjet til din ordrebekræftelse, faktura og følgeseddel kun for denne ordre.
Dette antal vil blive tilføjet til ordrebekræftelsen, faktura, følgeseddel, webbekræftelses-e-mail og produktetiket.
Produktoplysninger
ProducentMIKROELEKTRONIKA
Producentens varenummerMIKROE-5642
Varenummer4539942
Teknisk datablad
Application Sub Type3 Phase Sensorless BLDC Motor Driver
Silicon ManufacturerToshiba
Kit Application TypeMotor Driver
Silicon Core NumberTB9M003FG
Kit ContentsSmartMCD Board TB9M003FG, Damage Resistant Protective Box, 1x16 Male Pin Header
Product Range-
SVHCNo SVHC (27-Jun-2024)
Produktoversigt
MIKROE-5642 is a SmartMCD TB9M003FG board. Motor driving circuit board for automotive body electronics using SmartMCD™, a fifth-generation mixed-signal process technology, combining an ARM® Cortex® CPU with a Vector Engine co-processor and pre-drivers to control external N-channel MOSFETs. TB9M003FG 32-bit ARM® Cortex®-M0 core with maximum frequency of 40MHz, and built-in memories like 64Kbytes flash, 12Kbytes ROM, and 4KBytes RAM, and built-in vector engine and programmable motor driver.
- USB Type-C connectors, ten LEDs, push buttons, switches, headers, jumpers, connectors
- On-board debugger and JTAG/SWD header for interfacing with external electronics
- AEC-Q100 (Grade 0), automotive-electronic-component-certification qualified
- Small, affordable, yet powerful starter development kit
- Mounting holes simplify integration
- Compact design with clear and descriptive silk screen markings
- Includes all necessary circuits, switches, and potentiometers for operational testing's
Tekniske specifikationer
Application Sub Type
3 Phase Sensorless BLDC Motor Driver
Kit Application Type
Motor Driver
Kit Contents
SmartMCD Board TB9M003FG, Damage Resistant Protective Box, 1x16 Male Pin Header
SVHC
No SVHC (27-Jun-2024)
Silicon Manufacturer
Toshiba
Silicon Core Number
TB9M003FG
Product Range
-
Tekniske dokumenter (1)
Lovgivning og miljø
Tarifnr.:84733020
US ECCN:EAR99
EU ECCN:NLR
RoHS-kompatibel:Ja
RoHS
Kompatible med RoHS-phthalater:Mere information følger
SVHC:No SVHC (27-Jun-2024)
Download certifikat om produktoverholdelse
Certifikater om produktoverholdelse
Vægt (kg):.000001
