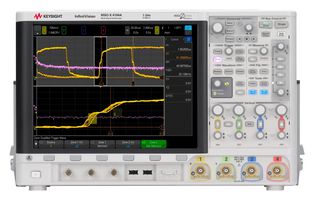

MSOX4104A

MSOX4104A is a 1GHz, 4+16 channel mixed signal oscilloscope. The 4000 X-Series boasts 12.1inch display, capacitive touch screen technology, InfiniiScan Zone touch triggering, 1-million-waveforms/sec update rate, MegaZoom IV smart memory technology and standard segmented memory. Expand your measurement capabilities with full upgradability: Add bandwidth, digital channels, dual-ch 20MHz arbitrary WaveGen, 3-digit DVM, serial trigger and analysis & mask testing.

• Easily view signals on the large 12.1inch capacitive touch screen
• Isolate signals in seconds with exclusive Zone touch triggering
• Capture more data with 4Mpts memory and standard segmented memory
• More signal detail with 1,000,000 wfms/s update rate
• Integrated digital voltmeter (standard)
• Standard segmented smart memory allows to capture longer periods of time at high sample rates

Indhold

MSO, 3-year warranty (90 days for unserialized accessories such as passive probes), Certificate of Calibration, 2-year calibration interval, One N2894A 700MHz passive probe (10:1 attenuation) per channel, N2756A 16-digital-channel MSO cable, Localized interface, Front panel overlay and built-in help system, Localized power cord, Front panel cover, Documentation CD.

Noter

PROMOTION: GET 15% OFF, valid till stock last(EUROPE only).
