BB01B
Daughter Board, Bitscope Blade UNO, Rack or Wall Mounting Solution, Raspberry Pi 3, 2, B+, A+
- Producent:
- BITSCOPE BITSCOPE
- Producentens varenummer:
- BB01B
- Varenummer:
- 2546576
- Produktsortiment
- HATs - Embedded Power
- Også kendt som:
- GTIN UPC EAN: 9349078000293
- Teknisk datablad:
- BB01B Datablad
Vælger af produktsortiment (HATs - Embedded Power)
Se alt fra dette produktsortimentProduktoplysninger
Vil du at se lignende produkter? Vælg blot de ønskede attributter nedenfor og tryk på knappen ×
- :
- -
- :
- -
- :
- -
- :
- -
- :
- -
- :
- Raspberry Pi 3, 2, B+ and A+
- :
- Blade Uno
- :
- HATs - Embedded Power
Tekniske dokumenter (5)
CAD Downloads
--Vælg venligst...
✔
--Vælg venligst...
×
Salgs- og leveringsbetingelser
CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.
Produktoversigt

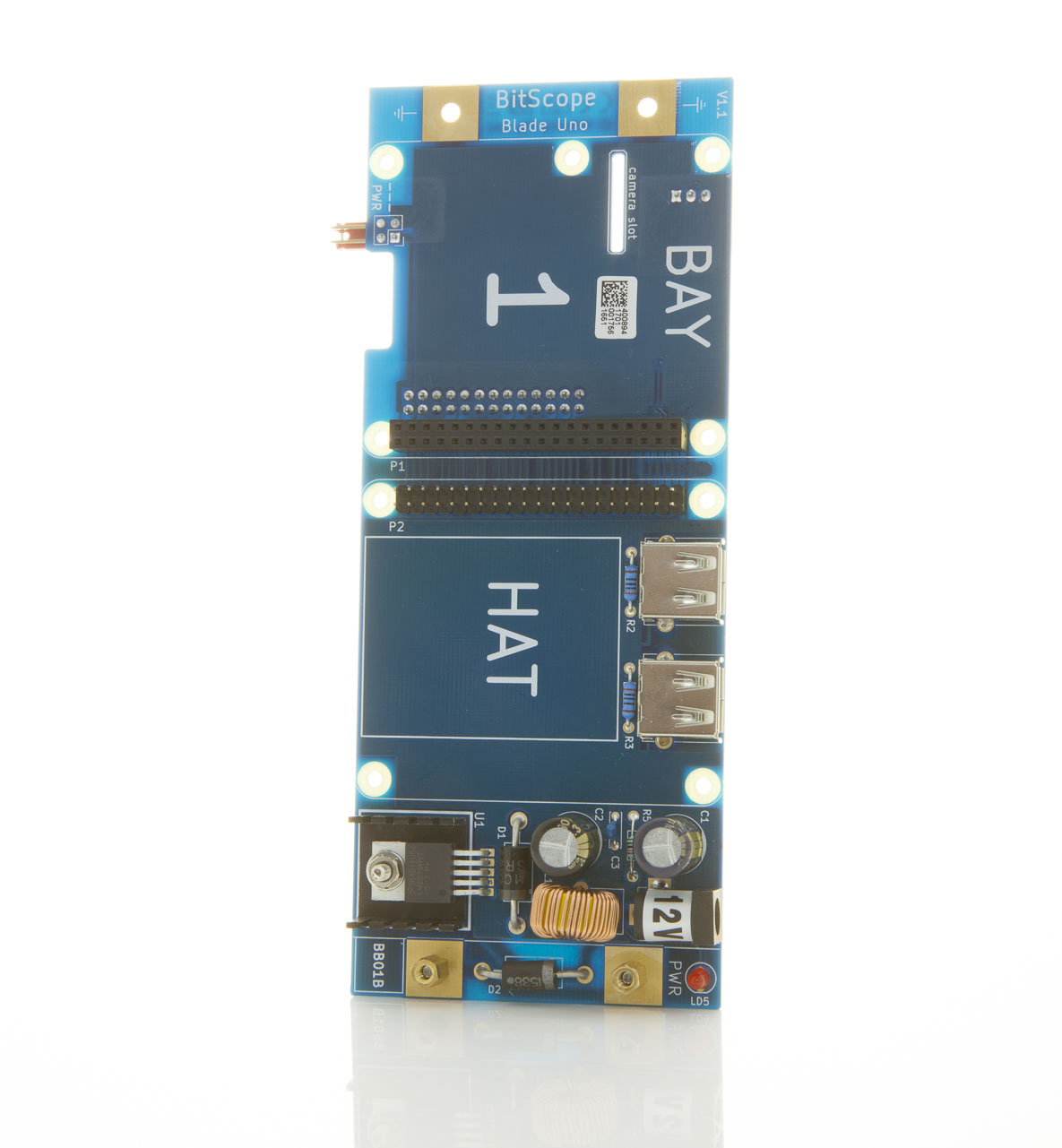

BitScope Blade Uno is a desktop, rack or wall mountable power and mounting solution for a single Raspberry Pi computer and a single HAT. Blade Uno solves the power problem when using the Raspberry Pi in industrial or other critical applications by providing constant, regulated power for a single Raspberry Pi unit and up to 6 USB devices (4 connected via the Raspberry Pi, 2 via the Blade Uno itself) from a single on-board 5V switch mode power supply. Can be used with simple plug packs, batteries, low cost uninterruptible power supplies (UPS) and even passive power over ethernet (PoE) solutions. Full access to the Raspberry Pi I/O including I2C, SPI, UART, PWM and GPIO is provided via the Blade HUB CAP expansion socket underneath the Raspberry Pi. Connect personality cards (e.g. a real-time clock, operation status displays, or almost any other physical I/O that conform to these standards). The HAT bay will accomodate standard Raspberry Pi HATS as well as small breadboards for easy prototyping.
- Design for one Raspberry Pi and one HAT
- Power and connect up to 4 x BitScopes or other USB devices via Raspberry Pi
- Additional 2 x power only USB ports on Blade Uno
- Raspberry Pi power control header
- Accepts unregulated 9V to 48V DC power
- Powerful on-board 5V switch mode supply provides up to 4A of current
- Power via 2.5mm socket or industrial power tabs
- Compatible with most 12V & 24V UPS
- Can be used with low cost passive PoE
- Compatible with batteries and most DC solar power systems
- Can power external USB, HDD & SSD
- Full access to Raspberry Pi's I2C, SPI, UART & most GPIO
- Provides 5V auxilliary power (e.g for Raspberry Pi Display)
- Slot for camera connector
- HDMI and audio accessible while in BAY
- Blade HUB I/O expansion socket
- Compatible with BitScope CAP industrial I/O
- Rack mount to build compute cluster solutions
- 4 x 3mm tabs and wall mounting stand-offs
Også kendt som
GTIN UPC EAN: 9349078000293
